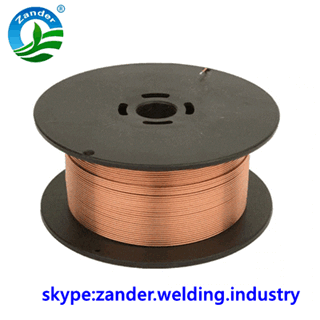

Welding Wire ER70S-6 SG2 1kg D100 welding wire
Description:
ER70S-6 is a kind of mild steel copper coated welding wire , suitable for 100% CO2 and Argon & CO2 mixed gas protective
welding with stable feasibility , good welding seams , less spatters and excellent welding process properties.
Application:
Used to weld ship building steel ( A, B, D , E , A36 , D36 , E36 ) and equivalent mild steel or 550 Mpa grade mild alloy steel ,
such as container building , construction machine , railway construction , pressure vessel for semi-auto or automatic
gas shielded welding.
Conform with:
GB/T 8110 ER50-6 ISO 636-A-W 42 3 W3Sil
AWS A5.18 ER70S-6 ISO 636-B-W 49A 3 W6
BS EN 1668-W 42 3 W3Sil JIS Z3316 YGT50
Package:
|
Welding wire diameter |
Packing |
|
0.6mm
0.8mm |
D100-0.5kg D100-1kg D200-5kg D270-15kg D300-15kg/18kg BS300-15/18kg K300-15/18kg Drum-250kgs Barrel-350kgs |
Mill cert:
|
Chemical Composition (%) |
C |
Mn |
Si |
P |
S |
Cu |
|
0.06-0.15 |
1.40-1.85 |
0.80-1.15 |
≤0.025 |
≤0.035 |
≤0.50 |
|
|
Mechanical Properties |
Yield strength(Mpa) |
Tensile strength(Mpa) |
Elongation(%) |
AKV (J) |
||
|
≥420 |
≥500 |
≥22 |
≥27(-30℃) |
|||
|
Wire Size (Mm) |
0.8 |
1.0 |
1.2 |
1.6 |
Welding Position |
|
|
Welding Current(A) |
40~140 |
50~220 |
80~350 |
120~550 |
||
|
Please Be Noted |
Wire shall be stocked in dry. open the packs just when welding to avoid the wire rust. |
|||||
|
Before welding please clean out the oil, rust, water etc from the work parts |
||||||
