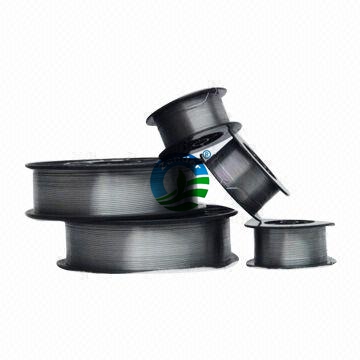

AWS E71T-1, E71T-1C, E71T-GS Flux Cored Wire
Instructions:Flux cored wire AWS A5.20 E71T-1
1.E71T-1 is formulated to deposit x-ray quality welds in flat, vertical up, horizontal, or overhead positions.
2.E71T-1 is designed for welding low carbon and mild steel, structural and pressure vessel grades.
3.E71T-1 flux core ingredients produce a fast freezing slag that facilitates out of position welds.
Bead contour is flat to
slightly convex. Slag is easy to remove and low spatter provides easy post weld cleaning.
Notes:
1.The oil stains and rust on the weldments should be cleared away.
2.Designed for welding with 100% CO2.
3.When welding, the gas flow rate is generally 20~25L/min.
Applications:
Better crack resistance, the defect rate is extremely low.
Suitable for important structure and high performance of weld crack demanding applications,
such as machinery manufacturing,
pressure vessel,shipbuilding,petrochemical,etc.
|
Standard AWS A5.20 E71T-1 |
C % |
Mn % |
Si % |
P % |
S % |
Cr % |
Ni % |
V% |
|||||
|
≤0.18 |
≤1.75 |
≤ 0.90 |
≤ 0.03 |
≤ 0.03 |
- |
- |
- |
||||||
|
Test result |
0.052 |
1.40 |
0.42 |
0.019 |
0.011 |
- |
- |
- |
|||||
|
Rm(Mpa) |
ReL(Mpa) |
A(%) |
Akw(J) |
||||||||||
|
≥375 |
490-660 |
22 |
-20°C |
||||||||||
|
≥27 |
|||||||||||||
Packing:
Dia:0.8mm 0.9mm 1.0mm 1.2mm,
(Packing : 1kg/inner boxes, 20boxes/cartons=20kg,50cartons/pallet=1000kgs)
(Packing : 5kg/inner boxes, 4boxes/cartons=20kg, 50cartons/pallet=1000kgs )
(Packing : 15kg/carton,72cartons/pallet=1080kgs )
